Coolant Distribution Unit
Intelligent flow control and system integration for rack-level cooling

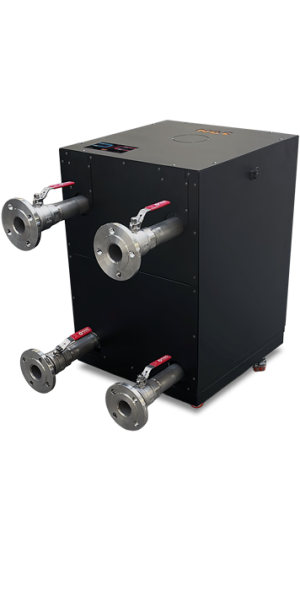

Coolant Distribution Unit
NGC’s CDU’s connect rack-level cooling to facility infrastructure through a modular, hydraulically steady design. Each CDU ensures defined operating conditions, precise flow regulation and predictable thermal performance across the system.
NGC’s Coolant Distribution Units are available in three defined capacity platforms:
- Active rack-level CDU supporting 10– 50 kW deployments
- Passive system-level CDU supporting 300–500 kW installations
- Large passive system-level CDU supporting installations up to 1.5 MW
Each platform operates within clearly specified hydraulic parameters to ensure stable performance and predictable thermal behaviour. The modular platform design enables scalable deployment while maintaining controlled hydraulic conditions.
Engineered for applications ranging from single-rack installations to multi-megawatt systems.
- Defined Hydraulic Control
Maintains stable pressure and flow conditions across connected racks.
- Rack-Level Independence
Reduces hydraulic interaction between units and preserves thermal stability.
- Modular Capacity Platforms
Available in three defined platforms: 10–50 kW (active), 300–500 kW (passive) and up to 1.5 MW (large passive).
- Seamless Facility Integration
Connects rack-level cooling to primary supply without complex rebalancing.
Product Overview
- Precise flow and pressure regulation
- High system stability under dynamic load
- Three defined capacity platforms: 10–50 kW (active), 300–500 kW (passive) and 1.5 MW (passive)
- Designed for scalable data centre deployments
- Reliable performance across a defined hydraulic range
- Supports precise flow sizing and return temperature control
- Reduced reaction time under dynamic load variations
- Scalable configurations from single deployments to multi-MW systems
- Active or passive CDU configurations
- Integrated heat exchanger platform
- Hydraulic isolation between primary and secondary circuits
- Sensor-based monitoring of pressure, temperature and flow
- Capacity: 10–50 kW (active), 300–500 kW (passive) and 1.5 MW (passive)
- Flow: up to 60 m³/h, depending on platform
- Operating temperature range: 15–40 °C
- Power consumption: 50–520 W (depending on configuration)
CDU
Intelligent flow control and system integration for rack-level cooling.
NGC’s Coolant Distribution Units connect rack-level cooling to facility infrastructure through a modular, hydraulically steady design. Each CDU holds defined operating conditions, precise flow regulation and predictable thermal performance — scaling from a single rack to multi-megawatt systems.
Capacity platform
Technical data
- Cooling capacity 10–50 kW
- Deployment Rack-level (active)
- Max flow Up to 5 m³/h
- Power consumption 310 W (max 520 W)
- Connections DN50 / DN25
- Reaction time 1–2 s
- Operating temperature 15–40 °C
Learn more about NGC’s CDU
Frequently Asked Questions about our CDU
Common questions about NGC’s Coolant Distribution Units and how to choose the right one for your setup.
A CDU separates the facility’s main cooling loop from the loop at the server rack, controlling flow, pressure and temperature for stable, precise cooling. It also keeps the facility’s water supply separate from the purified water used on the rack side. NGC offers an active platform (10–50 kW) and two passive platforms (300–500 kW and 1.5 MW) to match different rack densities and installation sizes. All are built for straightforward integration into new or existing data center infrastructure.
It depends on rack density, total heat load and whether you need active pumping or a passive, pressure-driven design. High-density AI and HPC racks typically need active CDUs (10–50 kW) for tighter flow control and faster response to load changes, adjusting within 1–2 seconds. Larger-scale deployments can use passive CDUs: 300–500 kW for system-level installations, or the 1.5 MW Passive CDU for multi-megawatt systems, where one unit replaces several smaller ones. Facility temperature range and available space also factor into the right choice.
Active CDUs use built-in pumps for precise flow control at smaller scale (10–50 kW), while passive CDUs use a modulated valve to regulate the flow at much larger loads, from 300–500 kW up to 1.5 MW. Active units offer tighter, faster response to load changes, adjusting within 1–2 seconds, versus 6–8 seconds for passive. Passive units use far less power, from 50 W, because they have no pump. The right choice depends on rack density, workload variability and available facility infrastructure.

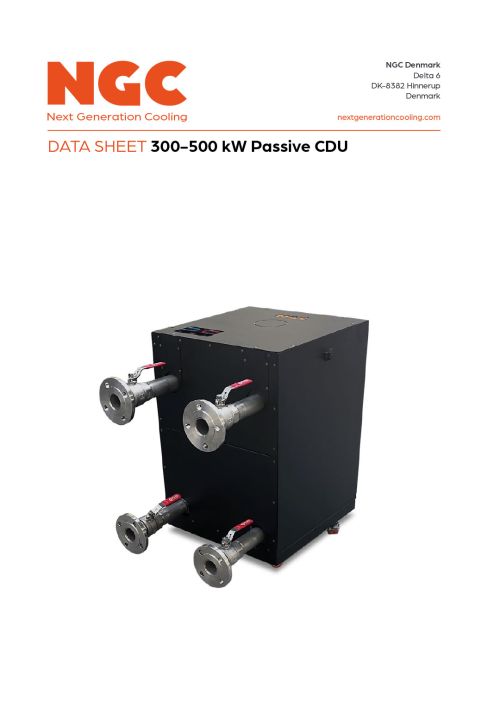

Download datasheet

Explore our range of CDU’s
Explore our Coolant Distribution Unit (CDU)
Each datasheet provides a detailed overview of hydraulic parameters, capacity ranges, operating temperature conditions, electrical requirements, and integration guidelines supporting accurate system design and performance evaluation.
